Single Screw Feeders

ED 20

The volumetric single screw feeder ED 20 without an agitator, with safety guard and a horizontal or vertical outlet tube is ideally suited for dosing of well- and free-flowing powder, flakes, pellets, granulates and agglomerates.

Feed rate 0.1 up to 80 dm3.

ED 20 B

The volumetric single screw feeder ED 20 B with an agitator,  safety guard and a horizontal or vertical outlet tube is ideally suited for dosing of less-flowing but not rapid-flowing microgranulates.

Feed rate 0.1 up to 80 dm3/h.

ED 55 B

The volumetric single screw feeder ED 55 B with agitator, with safety guard and horizontal or vertical outlet tube is ideally suited for dosing of poor- and non-free-flowing powder and microgranulates.

Feed rate 4.0 up to 4800 dm3/h.

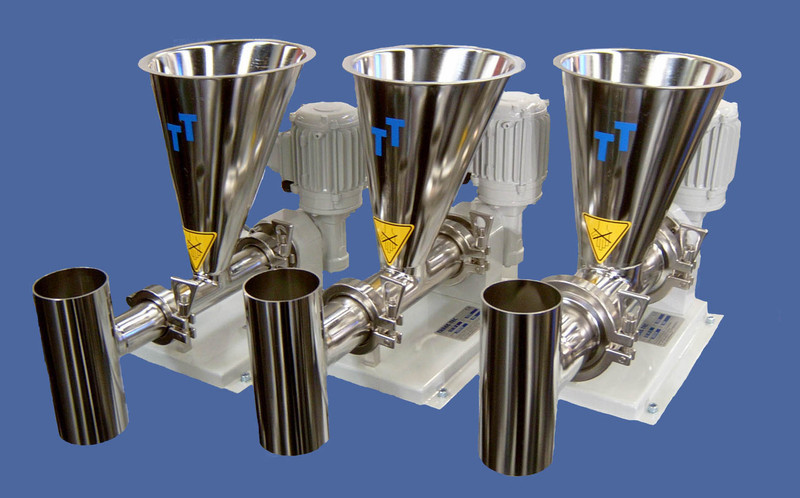

ED 40 Q, ED 50 Q, ED 65 Q

The low cost volumetric single screw feeders ED 40 Q, ED 50 Q, ED 65 Q for granulates or flour, without agitator and safety guard, with vertical outlet tube for direct clamping on to hopper.

Feed rate 2.0 up to 6500 dm3/h.
